AMB斯图加特汇聚全球机床行业顶尖技术与专业目光。作为工业自动化的发源地，德国市场对精度、可靠性与长期稳定性的标准极为严苛——AMB正是欧洲高端机床与运动控制产业链的权威舞台。
AMB Stuttgart: where German engineering's exacting standards for precision and reliability make it Europe's definitive stage for high-end machine tool and motion control innovation.

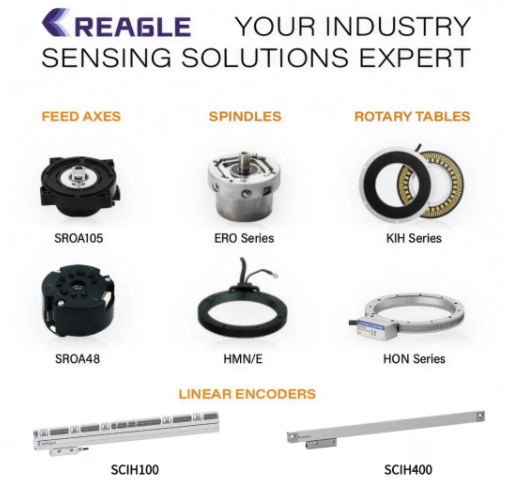

锐鹰传感以近两千万台设备全球验证的实力，携光、磁、感、力四大技术平台解决方案亮相6号馆6B53展位，并面向高端数控机床提供覆盖进给轴、主轴与四/五轴转台的全场景传感解决方案。
Backed by nearly 20 million devices in the field worldwide, Reagle Sensing presents its optical, magnetic, inductive, and force sensing platforms at Booth 6B53 (Hall 6), delivering full-scenario sensing solutions for high-end CNC machines—spanning feed axes, spindles, and 4/5-axis rotary tables.
方案适配灵活，多协议兼容，精准匹配高精度、高动态响应需求，助力实现更优的加工表面质量与良率；同时具备出色的抗振、抗污、抗干扰能力，显著降低非计划停机与故障率，保障设备长期运行下的精度稳定性。
Multi-protocol compatibility and flexible adaptation deliver superior surface quality and yield, while excellent vibration, contamination, and interference resistance reduce unplanned downtime and ensure long-term precision stability.

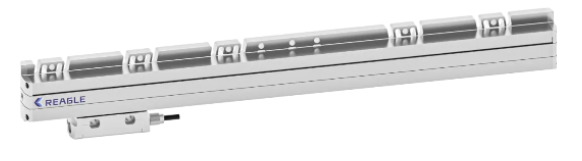

适用于进给轴的直线编码器 Linear Encoders for Feed Axes 传统半闭环控制依赖滚珠丝杠，易受热变形、反向间隙影响。SCIH100封闭式绝对值直线感栅尺直接测量滑座位置，构建全闭环控制，从源头消除传动误差。 Traditional semi-closed-loop control relies on ball screws, prone to thermal deformation and backlash. The SCIH100 enclosed absolute linear inductive scale measures slide position directly, enabling full closed-loop control and eliminating transmission errors at the source. 核心亮点：电磁感应，无惧油污与水汽 与光栅尺依赖洁净空气不同，SCIH100采用电磁感应检测原理，从根本上摆脱了对洁净环境的依赖。相较于光栅尺，SCIH100具备更优异的耐油、耐水性能，耐污性与可靠性显著提升——在冷却液飞溅、铁屑弥漫的真实车间环境中，依然保持稳定输出，让精度不再因污染而"打折"。 Unlike optical scales that demand pristine air, the SCIH100 detects via electromagnetic induction—freeing itself from clean-environment constraints. With superior oil, water, and dirt resistance, it stays accurate and stable amid coolant splash and metal chips, so contamination never compromises precision. 坚固防护结构 Robust Protective Structure 优化传感器形态与高防护等级外壳设计，配合防尘密封与耐冷却液材料，适应各类严苛工况。 Dust seals, coolant-resistant materials for harsh conditions. 纳米级测量精度 Nanometer-level measurement accuracy 基于自主研发的电磁感应信号处理技术，实现高达50nm分辨率的精密位置反馈。 Resolution up to 50nm. 便捷可靠安装 Convenient and Reliable Installation 兼容行业标准多点安装方式，具备高抗振、抗冲击特性，安装调试更便捷。 Industry-standard multi-point mounting, high vibration/shock resistance.
适用于四/五轴转台的编码器 Encoders for 4- and 5-axis rotary tables KIH系列中空感栅编码器专为机床四/五轴转台设计，采用非接触式电感技术，具有高动态响应和强环境适应性，在油污、水汽、振动等恶劣工况下依然稳定运行，精度不受影响。 The KIH hollow-shaft encoder is purpose-built for 4/5-axis machine tool rotary tables. Its non-contact inductive technology delivers high dynamic response and maintains precision despite oil, moisture, and vibration. KIH系列中空感栅编码器 KIH Series Hollow Shaft Encoders 最高分辨率26bit，绝对定位精度≤±5角秒，重复精度≤±1.5角秒；安装容限大，定子偏心4.4丝以内或转子偏心6丝以内，对精度无影响，支持激光干涉仪一键补偿；IP65防护，涉水精度不受影响，天然抗电磁干扰；提供多种尺寸，适配精密机床到大型加工中心各类转台。 26bit resolution, absolute accuracy ≤±5″, repeatability ≤±1.5″. Wide installation tolerance, one-click laser compensation. IP65, waterproof accuracy, EMI immune. Multiple sizes. HON绝对值圆光栅 HON Absolute Circular Encoder 采用一体式不锈钢结构，外刻真正绝对值单码道，搭配SONA36读头抗污出色；栅距30μm、26bit分辨率0.019角秒，精度满足精密转台等严苛场景；轻薄低惯量设计零负担嵌入高速系统，多规格兼容主流标准，让精密测量在真实工况下稳定如初。 One-piece stainless steel, true absolute single track, SONA36 readhead resists contamination. 30μm pitch, 26bit/0.019″ resolution. Slim, low inertia, multiple sizes compatible with mainstream standards.

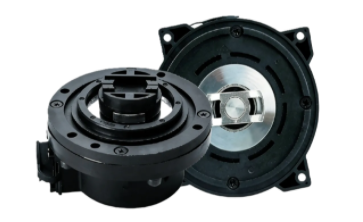

适用于进给轴的旋转编码器 Rotary Encoder for Feed Axes 为解决传统编码器因电池老化、漏液或断电导致数据丢失、频繁维护的痛点，锐鹰传感推出无电池机械多圈系列，采用独特的机械多圈计数结构，断电后永久保持位置信息，真正实现零维护、高可靠、长寿命。 To eliminate data loss and frequent maintenance caused by battery degradation or power failure, Reagle's battery-free mechanical multi-turn encoders permanently retain position without battery power—truly maintenance-free, highly reliable, and long-lasting. SROA48整体机械多圈绝对值编码器 SROA48 Integral Mechanical Multi-Turn Absolute Encoder 无电池机械多圈，免电池盒、终生免维护，杜绝位置丢失与重新调刀。25位高精度，配合高精补偿算法，伺服动态响应更优，加工光洁度更佳。高刚性、高响应、高定位精度，高度仅29mm，轴向空间节省20%。 Battery-free mechanical multi-turn, lifetime maintenance-free, eliminates position loss and tool re-alignment. 25-bit high precision with compensation algorithms for superior servo dynamic response and surface finish. High rigidity, high response, high positioning accuracy. Height: 29mm, 20% axial space saving. SROA105十字联轴机械多圈绝对值编码器 SROA105 Cross-Shaft Mechanical Multi-Turn Absolute Encoder 机械多圈技术，免电池维护隔热；允许转动轴偏摆及轴窜误差大；集成电机后盖设计，兼容安装接口，维护便利。 Mechanical multi-turn, battery-free, heat-insulated. Accommodates large shaft runout and axial play. Integrated motor rear cover, compatible mounting interface for easy maintenance.

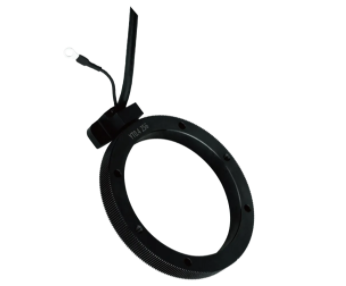

适用于主轴的编码器 Encoders for Spindles HME齿轮环编码器 HME Gear Ring Encoder 低速度波动和高信号质量，读头IP68防护等级，适用于恶劣环境；非接触式，免保养无磨损，提供128/256/384/512多种齿轮可选。 Low-speed fluctuations and high signal quality; the read head features an IP68 protection rating, making it suitable for harsh environments; non-contact, maintenance-free, and wear-free; available with a variety of gear options: 128, 256, 384, and 512. ERO正余弦编码器 ERO Sine-Cosine Encoder 兼容性强，高可靠性、高防护性，支持通讯型、模拟量。 High compatibility, high reliability, and high protection; supports communication and analog signals.
德国斯图加特国际金属加工展览会（AMB 2026）开幕在即，与锐鹰传感共话机床行业的前沿应用，探索传感技术如何为高端机床注入"精度灵魂"，携手推动机床行业的智造革新与精度革命！ AMB 2026 is about to open. Join Reagle Sensing to explore how sensor technology empowers high-end machine tools with the "soul of precision." Visit us at Hall 6, Booth 6B53. 敬请莅临锐鹰传感展位6号展馆6B53，共赴这场行业盛会！ We cordially invite you to visit the Reagle Sensing booth at Hall 6, Booth 6B53, and join us for this industry event! 除了远赴德国斯图加特，锐鹰传感也将同步亮相 2026玉环机床展，与国内客户零距离交流。欢迎国内客户莅临现场，体验全场景传感解决方案，共探精密制造的更多可能。 In addition to AMB, Reagle will exhibit at Yuhuan Machine Tool Exhibition 2026 (Oct 23–26, Yuhuan Convention Center). Domestic customers are welcome to experience the same full-stack solutions.
