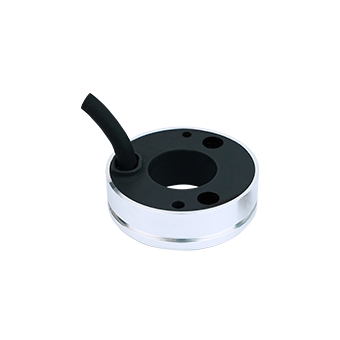

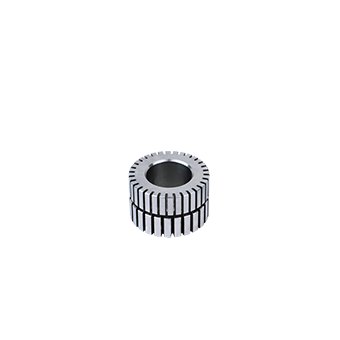

XIN52 High Performance Encoder

Summary

Technical specifications

Application

Related products

Download

Back

Summary

Gallery

Video

Product characteristics

Product advantages

Single-turn 17-bit absolute position signal output without the need for an external decoder;

Fully sealed design, suitable for various harsh environmental conditions;

Large installation tolerance, with axial movement tolerance of ±0.25mm and radial movement tolerance of ±0.1mm.

Technical specifications

System

Communication Specification	RS485
Resolution	17bit
Baud Rate	2.5Mbps
Communication Frequency	≤16kHz

Electrical

Supply Voltage	5V±5%
Differential Output Level	High leve ≥3.5V；Low level≤1.7V

Environment

EMC Features	IEC61000-3
Operating Temperature	-40℃~125℃
Shock	Impact acceleration 980m/s² ，11ms； 3 times per direction, total 18 times
Vibration	The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s² between 55~2000 Hz ; 2 hours per axial (XYZ)
