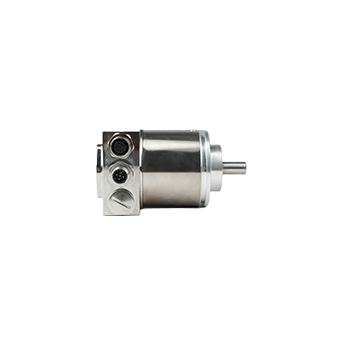

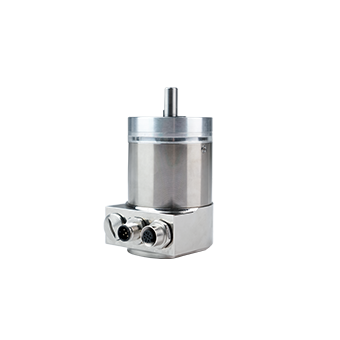

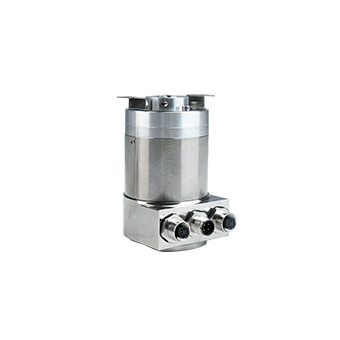

DIN58 Series

Summary

Technical specifications

Application

Related products

Download

Back

Summary

Gallery

Video

Product characteristics

Product advantages

Inductive Measurement Principle, high precision and high stability;

Resolution of up to 4096 (multi-turn) and 131072 (single-turn);

Flexible Connection Options, Suitable for a Variety of Applications;

Supports Multiple Protocols, Enhanced Compatibility.

Technical specifications

System

Outer Diameter	φ58mm
Shaft Diameter	Output shaft diameter φ 6 / 10 mm; Blind hole diameter φ 10 / 12 / 14 / 15 mm
Resolution	Single-turn: maximum support 131072 (17bit); Multi-turn:4096 (12bit)
Operating Speed	≤6000rpm
Interface	CANopen, SSI, ProfiNET, EtherCAT
Starting Torque	0.05NM
Absolute positioning accuracy	±0.01°
Repetitive positioning accuracy	±7 arc-sec

Electrical

Supply Voltage	10-30V
Main power supply current consumption (typical)	76mA
Differential Output Level	High level≥2.4V; Low level≤0.4V
Insulation Resistance	50MΩ
Edge Change Time	10ns

Environment

Operating Temperature	-40℃~85℃
Hurnidity	95%,No Condensing
Auxiliary Functions	Reverse Polarity Protection, Configurable Resolution, Configurable Rotation Direction, Configurable Zero Position
Electrical Interface	Aviation Plug, Wire Release
IP Rating	IP 67
Shock	100g, 2ms (EN 60068-2-27)
Vibration	30g, 10Hz ... 2000Hz (EN 60068-2-6)
